Yet many housing authorities and owners still misunderstand how severity ratings, inspectable areas, and unit-level thresholds combine into that final number. The result: properties that look compliant on paper fail unexpectedly, often because of a rule buried deep in HUD's scoring methodology.
This guide breaks down exactly what the NSPIRE score measures, how HUD calculates it, where the pass/fail lines sit, what drives the number up or down, and how to prepare before an inspector shows up.
Key Takeaways
- NSPIRE scores (0-100) replace UPCS, weighting deficiencies across Unit, Inside, and Outside areas
- Scores of 60+ generally pass, but the Unit Threshold of Performance rule can cap scores at 59
- The formula: (Severity Rating × Deficiencies) ÷ Sample Size, applied across 12 severity-location values
- Unit-level deficiencies carry the heaviest weight, reflecting HUD's focus on resident safety
- Regular self-inspections and organized documentation are the best defense against a failing score
What an NSPIRE Inspection Score Represents
The NSPIRE score is the 0-100 output of HUD's Real Estate Assessment Center (REAC) inspection protocol. It measures the physical condition and habitability of HUD-assisted housing, and it has now largely replaced the old UPCS scoring system.
The rollout wasn't a single flip of a switch. Public housing moved to NSPIRE scoring after July 1, 2023, while non-demonstration Multifamily and PBRA properties transitioned starting October 1, 2023.
Housing Choice Voucher and Project-Based Voucher programs still use a pass/fail indicator rather than the 0-100 score. Mandatory HCV/PBV compliance with NSPIRE has been pushed to February 1, 2027, though PHAs can adopt it earlier.
The score functions as a compliance gatekeeper. It can:
- Trigger mandatory corrective action and follow-up reporting
- Feed into a PHA's PHAS Physical Condition Indicator once its full portfolio has transitioned to NSPIRE
- Prompt administrative review or referral to HUD's Departmental Enforcement Center at low scores
One point worth remembering: the score is situational, not fixed. It reflects a specific inspection's deficiency count and severity mix, so it can shift meaningfully from one cycle to the next based on maintenance, weather, resident behavior, and sample luck.
The Three Inspectable Areas Behind Every Score
Every deficiency HUD records gets sorted into one of three areas:
- Unit – interior components of an individual dwelling, such as electrical systems, plumbing, and smoke alarms
- Inside – common areas and building systems inside the structure but outside individual units, like hallways, laundry rooms, and stairwells
- Outside – the site, exterior components, and systems outside the building itself, including parking lots, grounds, and building exteriors
Unit deficiencies carry the highest point values of the three. HUD built the formula this way because residents spend the most time inside their own units, and that's where health and safety risks have the most direct impact.
HUD does issue the numeric score alongside a rating band (0-59, 60-79, 80-89, and 90-100) that determines a property's future inspection frequency. There's no separate letter grade attached to the score; the numeric rating and its associated cycle length do that communication job instead.
How NSPIRE Scores Are Calculated: The Formula Explained
NSPIRE scoring is both a design construct on paper and an operational check that plays out at every physical inspection. Understanding the mechanics matters more than memorizing the final number.
HUD assigns every deficiency a severity rating: Life-Threatening, Severe, Moderate, or Low. Each severity level has a distinct point value depending on whether the deficiency occurred Outside, Inside, or in a Unit — creating 12 total deduction values.
| Severity Rating | Outside | Inside | Unit |
|---|---|---|---|
| Life-Threatening | 49.6 | 54.5 | 60.0 |
| Severe | 12.2 | 13.4 | 14.8 |
| Moderate | 4.5 | 5.0 | 5.5 |
| Low | 2.0 | 2.2 | 2.4 |
Source: HUD's final NSPIRE Scoring Notice, Federal Register, July 2023

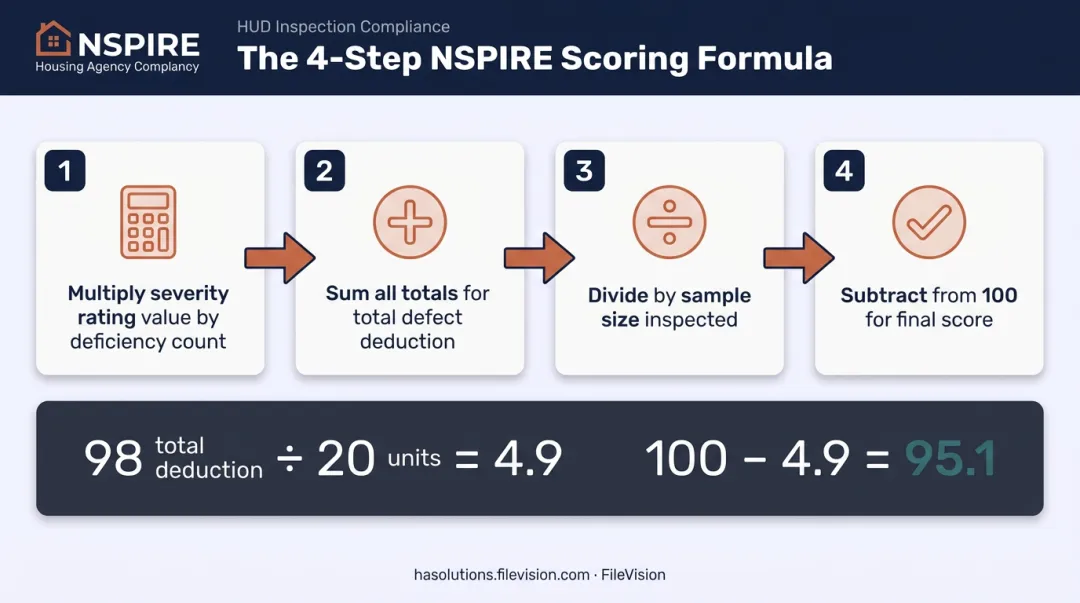

The formula itself:
- Multiply each severity rating value by the number of deficiencies found at that severity/location combination
- Add those totals together for the property's total defect deduction
- Divide the total defect deduction by the number of sampled units inspected
- Subtract that result from 100 to get the final score (scores below zero round to zero)
A Worked Example
Take an 80-unit property with a 20-unit sample. Say inspectors find 30 total deficiencies:
- 10 Moderate Unit deficiencies: 10 × 5.5 = 55
- 15 Low Inside deficiencies: 15 × 2.2 = 33
- 5 Low Outside deficiencies: 5 × 2.0 = 10
Total defect deduction: 55 + 33 + 10 = 98. Divide by the 20-unit sample: 98 ÷ 20 = 4.9. Subtract from 100: 100 - 4.9 = 95.1, which rounds to 95.
That's a strong passing score under the three-year inspection cycle. But swap those 10 Moderate Unit deficiencies for a single Life-Threatening Unit deficiency (60 points) plus a few Severe Unit findings, and the math changes fast, since Unit-area values dominate the deduction total.
One rounding quirk to note: calculated scores that land between 59 and 60 always round down to 59, not up to 60. That's a deliberate design choice tied to the threshold rule covered next.

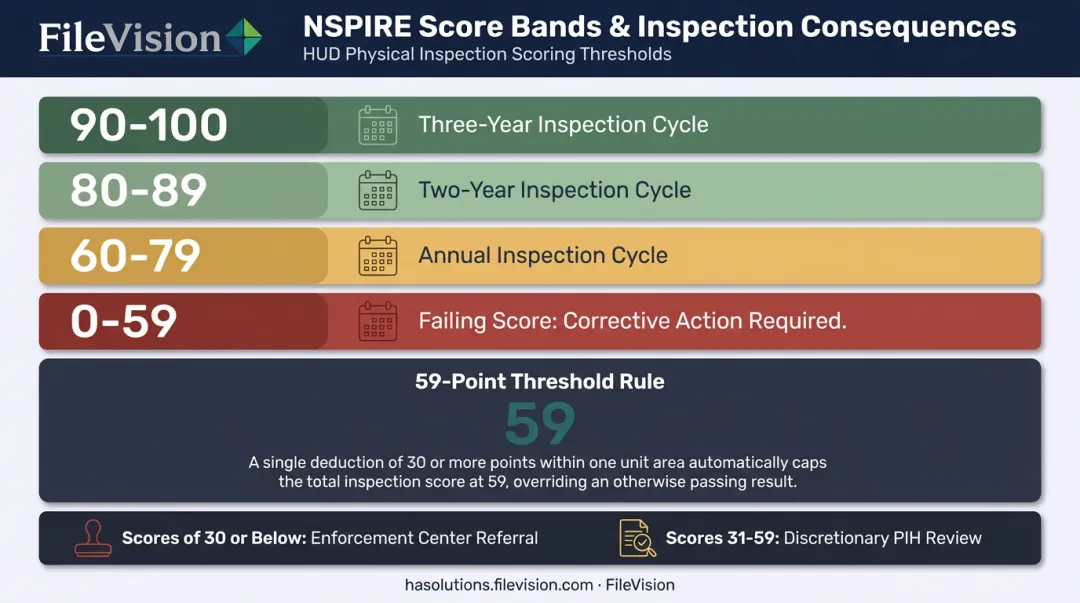

NSPIRE Score Ranges, Failing Thresholds, and the Critical 59-Point Rule
A score of 60 or higher passes. Anything below 60 fails and triggers mandatory follow-up, including a full property survey submitted electronically to HUD within 60 days.
But the number that trips up the most owners is exactly 59.
The Unit Threshold of Performance
HUD built in a rule specifically to stop poor unit conditions from being masked by strong common-area or exterior scores. If total Unit-area deductions reach 30 or more points, and the property's calculated score would otherwise be 60 or higher, HUD overrides the result and records a final score of 59, an automatic fail.
In other words, a property can ace every hallway, roof, and parking lot inspection and still fail outright if enough units have serious problems.
Non-scored but mandatory items: Smoke alarms and carbon monoxide detectors don't factor into the numeric score at all, but any defect in these systems is classified Life-Threatening and must be corrected within 24 hours regardless of scoring impact.
How Common Is a 59?
According to NAHRO's analysis of the first release of public-housing NSPIRE data, properties are roughly 11 percentage points more likely to score exactly 59 under NSPIRE than they were under UPCS, where the probability sat near 0.78%.
NAHRO's 2024 report on public housing NSPIRE data also found that among 631 properties inspected under both systems, mean scores rose from 60.5 under UPCS to 73.7 under NSPIRE, though HUD had prioritized inspecting older, lower-scoring properties first, so that jump isn't a portfolio-wide guarantee.
Administrative consequences scale with severity. Per HUD's PIH 2023-16/H notice:
- Scores of 30 or below trigger automatic Departmental Enforcement Center referral
- Public housing scores between 31-59 face discretionary PIH review
- Two consecutive Multifamily scores below 60 can prompt administrative review
Once a PHA's entire public housing portfolio has transitioned to NSPIRE inspections, these scores feed directly into the Physical Condition Indicator of PHAS, worth 40 of the program's 100 points under standard PHAS rules.
Key Factors That Influence Your NSPIRE Score
Unit Sampling Methodology
REAC doesn't inspect every unit. It selects a statistically significant sample targeting a 90% confidence level with a 6% margin of error, capping the maximum sample at roughly 32 units even for large properties.
Because the score divides total deductions by sample size rather than total unit count, a handful of bad units in a small sample can swing the final number disproportionately. A property with 200 units might only see 27-28 units inspected, meaning each unit's condition carries outsized statistical weight.
Phased-In Affirmative Requirements
HUD introduced new "affirmative requirements" under NSPIRE, such as GFCI-protected outlets near water sources and permanently mounted light fixtures. These items are currently identified during inspections but not yet factored into the numeric score.
That grace period is ending. HUD's most recent guidance moves scoring of these requirements into effect starting October 1, 2026, for both Public Housing and Multifamily portfolios. Confirm the current deadline before your next inspection cycle, since HUD has adjusted this timeline before.
Housing authorities that track these details in a centralized system, such as FileVision's NSPIRE inspection evidence module, can flag non-compliant units well before scoring begins.
Property Size and Age
NAHRO's research found NSPIRE-to-UPCS score increases were broadly consistent across development sizes, from small 1-50 unit properties up to 500+ unit portfolios. Older properties showed more variability in deficiency counts, though the data doesn't establish a direct causal link between age and score outcomes.
How to Prepare for NSPIRE Inspections and Protect Your Score
The properties that pass consistently under NSPIRE share one habit: they inspect themselves before HUD does.
Run self-inspections regularly. Use HUD's official NSPIRE checklist and the updated score calculator tool to identify deficiencies before a REAC inspector arrives. Catching a Severe unit-level issue internally means you fix it on your own timeline, not HUD's 24-hour correction window.
Prioritize unit-level systems first. Given the Unit Threshold of Performance rule, health and safety systems deserve the most attention:
- Smoke alarms and carbon monoxide detectors
- Electrical outlets and panels
- Plumbing and water heater condition
- HVAC function and ventilation
A single Life-Threatening finding in a unit costs 60 points on its own. That's enough to push a property toward the threshold rule almost by itself. Fixing those systems solves half the problem—proving you fixed them solves the other half.
Keep documentation organized and audit-ready. When HUD or an internal reviewer requests inspection history, scrambling through paper files or scattered folders costs time you don't have.

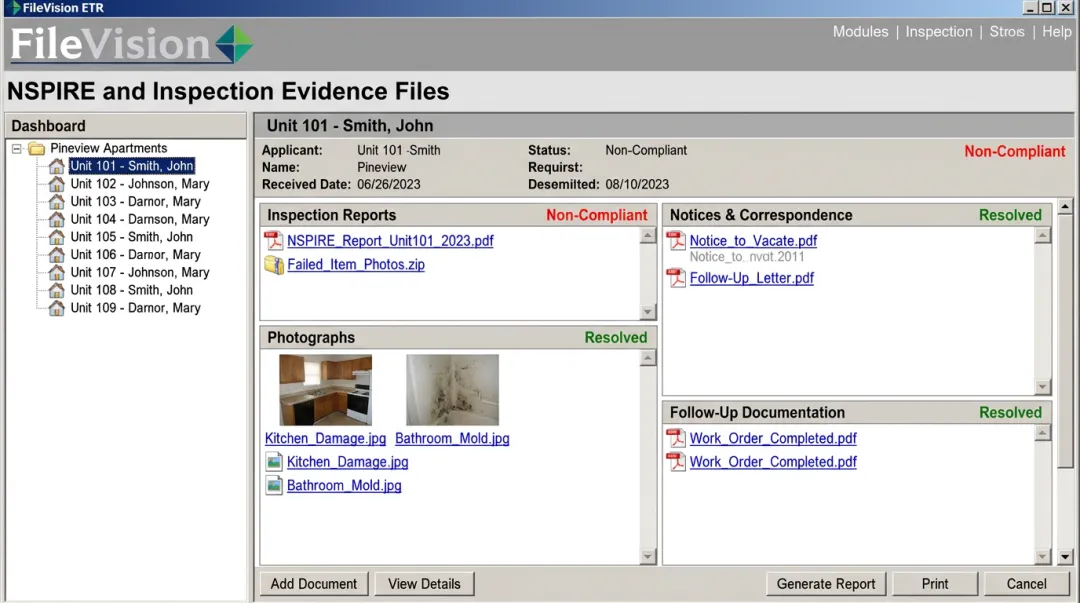

This is where a system like FileVision's ETR platform proves useful. Its NSPIRE and Inspection Evidence Files capability stores inspection reports, photographs, notices, and follow-up work evidence in one organized, retrievable location tied to each unit's record.
The platform also supports:
- Missing-document tracking that flags incomplete inspection files before a deadline hits
- Role-based, read-only access so external auditors can review tenant and unit history remotely, without full system access
- Audit trails that log every file interaction, giving staff a clear record of what happened and when
None of this replaces the inspection itself. But when your evidence is organized and retrievable in minutes rather than days, you're in a far stronger position to respond to HUD's follow-up requirements after any inspection, passing or not.
Frequently Asked Questions
What is a good NSPIRE score?
Scores of 90 or above are considered strong and qualify for a three-year inspection cycle. A score of 60+ passes, while anything below 60, or exactly 59 due to the unit threshold rule, requires corrective action.
How is the NSPIRE score different from the old UPCS score?
NSPIRE weights in-unit, health-and-safety deficiencies far more heavily than UPCS did, and uses a normalized per-sample formula. UPCS leaned more toward general condition and appearance across a property.
What happens if a property fails its NSPIRE inspection?
The property must survey its entire project and submit results to HUD within 60 days. Depending on severity, this can mean increased inspection frequency, administrative referral, or PHAS impact for public housing agencies.
Can a property fail NSPIRE even if it has a high overall score?
Yes. The Unit Threshold of Performance rule automatically caps the final score at 59, an automatic fail, when unit-area deductions reach 30 or more points. This override applies regardless of how well the Inside and Outside areas scored.
How many units get inspected under NSPIRE?
HUD uses a statistically driven sample size based on a 90% confidence level and 6% margin of error, capping at roughly 32 units even for very large properties.
How often are NSPIRE inspections conducted?
Frequency depends on the prior score: annually for scores under 80, every two years for scores of 80-89, and every three years for scores of 90 or above.
